Silverstone ET750-G V1.2 750W ATX 80plus Gold PSU

$169.00 NZD
Tax included.
In stock!

Product description

Upgrade your PC's power with Silverstone ET750-G V1.2 PSU. With a powerful 750W output and 80Plus Gold certification, this ATX PSU will keep your system running smoothly and efficiently. Plus, the silent 120mm fan ensures minimal noise. No more tangled cables, as all are flat and fixed. Includes 4x PCI-E and 2x CPU for easy installation (it's a piece of cake!).

View Full Details
Add to Cart
Technical Specifications

Model Number

  • Product No.: SST-ET750-G

Power Specifications

  • Max. DC Output: 750W
  • Combined +3.3V & +5V: 120W
  • Combined +12V: 744W
  • Power Density: 415W per liter

Load Range

  • Output:
  • +3.3V: Max. 22A, Peak / Min. 0A
  • +5V: Max. 22A, Peak / Min. 0A
  • +12V: Max. 62A, Peak / Min. 0A
  • +5VSB: Max. 2.5A, Peak 3.0A / Min. 0A
  • -12V: Max. 0.3A, Peak / Min. 0A
  • Range (%): ±5% for +3.3V, +5V, +5VSB; ±10% for -12V
  • Line Regulation (%): ±1% for all voltages
  • Ripple (mVp-p):
  • +3.3V: 50mV
  • +5V: 50mV
  • +12V: 120mV
  • +5VSB: 50mV
  • -12V: 120mV

Input Specifications

  • Input Voltage: 90 ~ 264 Vrms
  • Input Frequency Range: 47Hz ~ 63Hz

Efficiency and PFC

  • Efficiency: 87% ~ 90% at 20% ~ 100% loading
  • PFC: Active PFC (PF > 0.9 at full load)

MTBF and Operating Conditions

  • MTBF: 100,000 hours
  • Operating Temperature: 0°C ~ 40°C

Protection Features

  • Over Current Protection
  • Over Power Protection
  • Over Voltage Protection
  • Short Circuit Protection
  • Over Temperature Protection

Connectors

  • 1 x 24 / 20-Pin Motherboard Connector: 500 mm
  • 1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V Connector: 750 mm / 150 mm
  • 4 x 8 / 6-Pin PCIe Connectors: 500 mm / 150 mm x 2
  • 8 x SATA Connectors: 500 mm / 150 mm x 2
  • 3 x 4-Pin Peripheral Connectors: 500 mm / 150 mm x 2
  • 1 x 4-Pin Floppy Connector: 500 mm / 150 mm x 2

Cooling and Form Factor

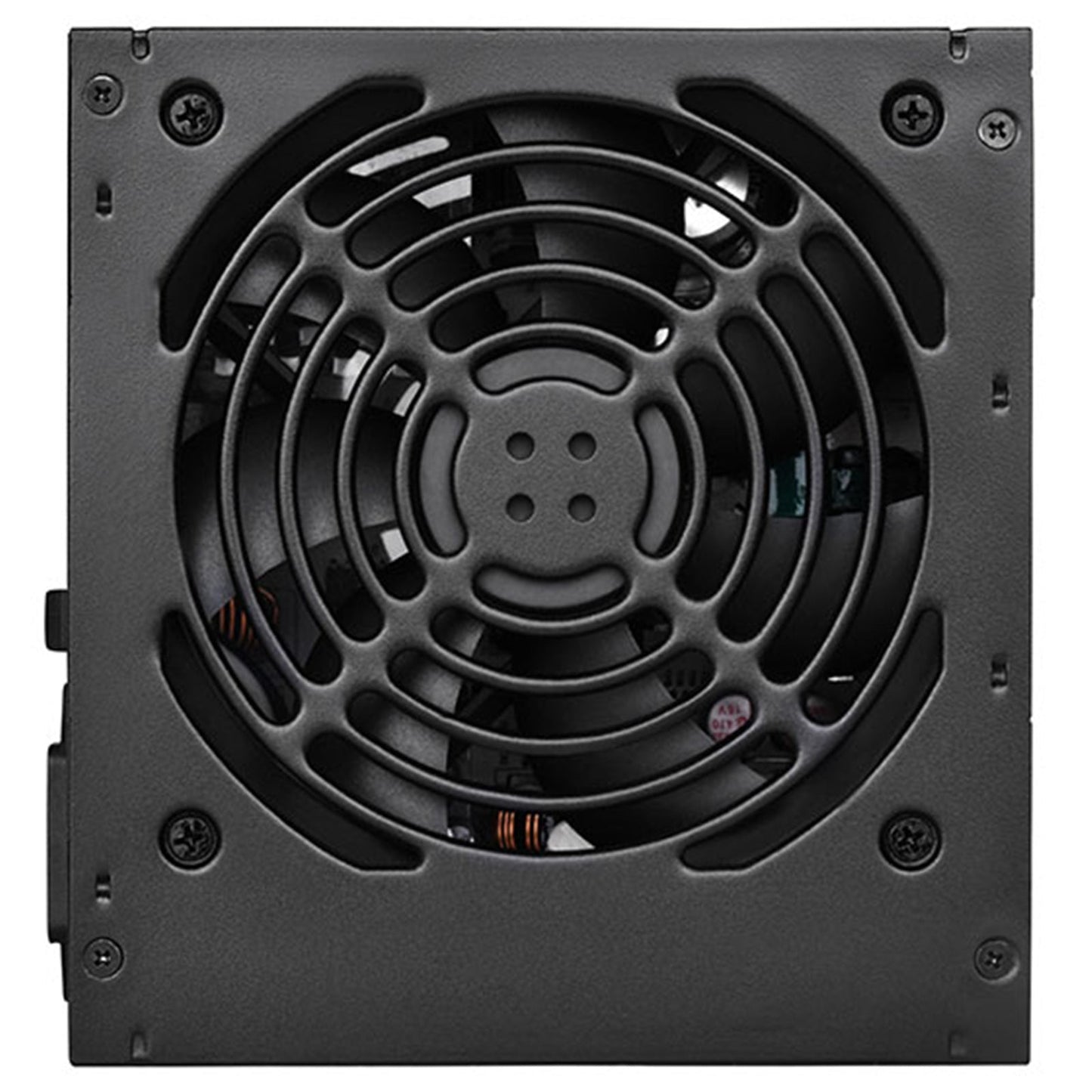

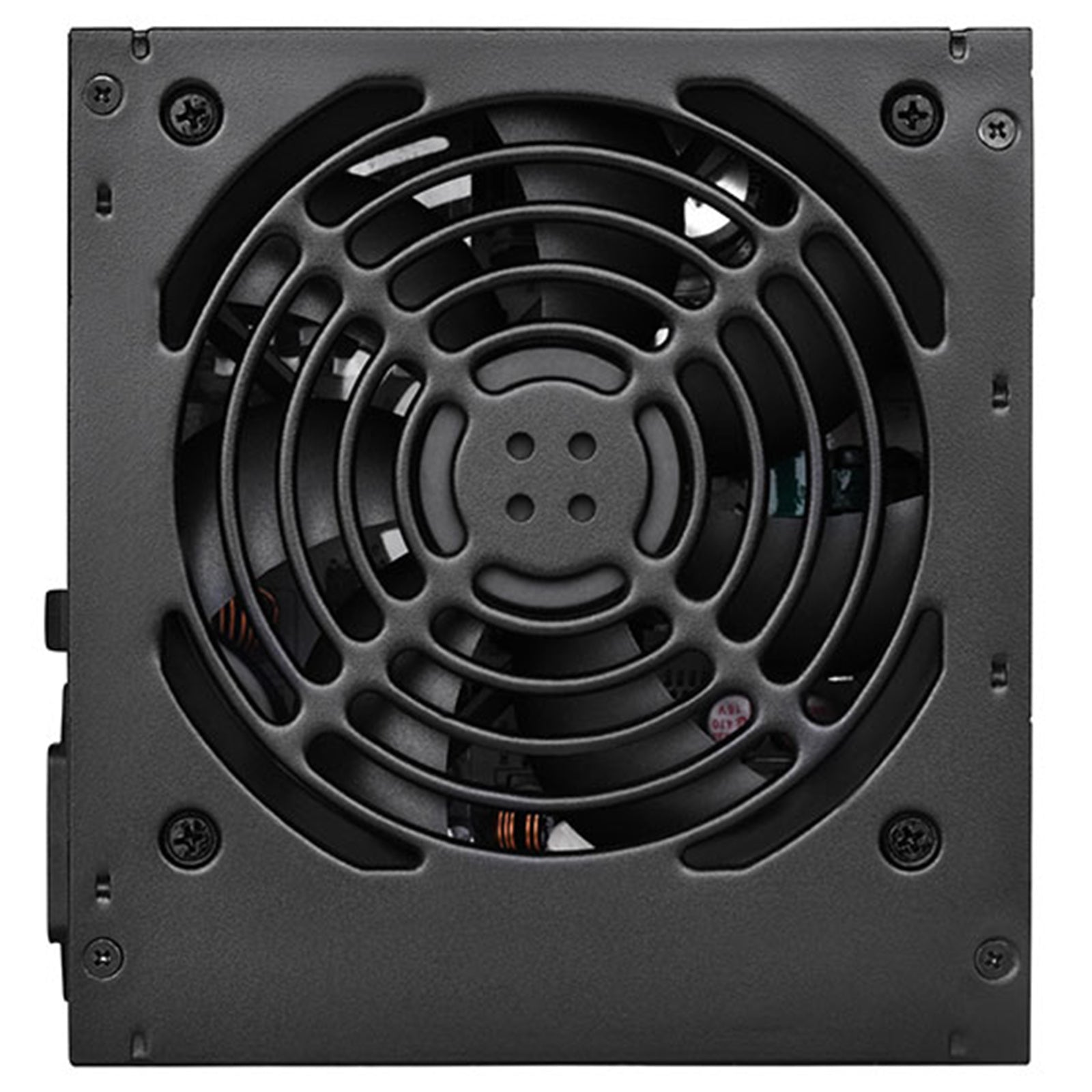

  • Cooling System: Single 120mm silent fan
  • Form Factor: ATX

Noise Level

  • Noise Level: 18 dBA minimum

Dimensions and Weight

  • Dimensions: 150 mm (W) x 86 mm (H) x 140 mm (D)
  • Weight: 1.68 kg

Certification

  • Certification: 80 PLUS Gold
